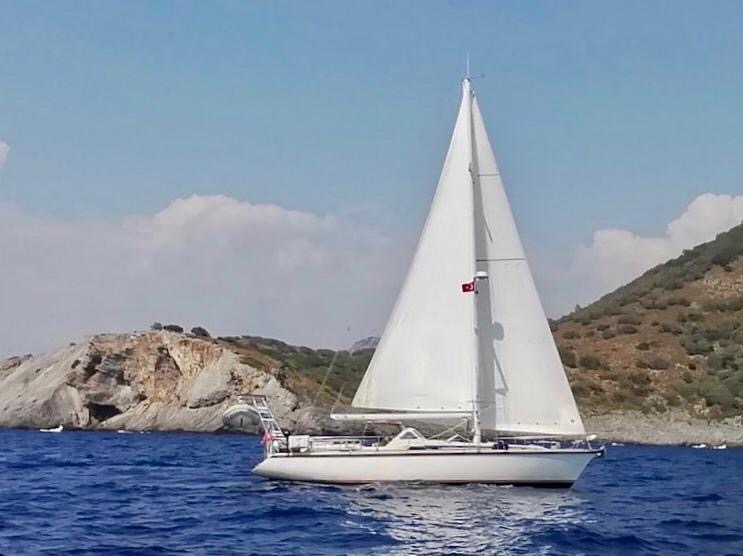

Santorin’s main features
Model Santorin
Hull type Monohull
-
Category Offshore cruising sailboat
-
Sailboat builder Amel
-
Sailboat designer Jacques Carteau
-
Country France
-
Construction GRP (glass reinforced polyester):
– Hull: Single skin fiberglass polyester
– Deck: Sandwich fiberglass polyester -
Number of hulls built About 150
-
First built hull 1989
-
Last built hull 1997
-

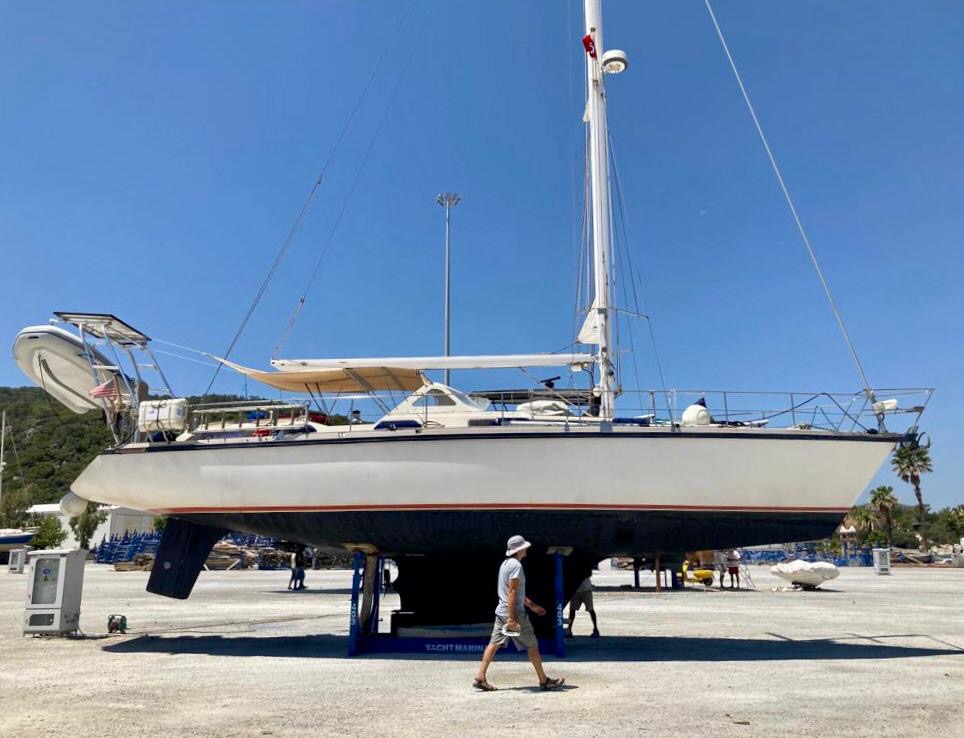

Appendages Keel : fin with bulb
-
Helm Single helm wheel
-
Rudder Single rudder on skeg
-
Unsinkable No
-
Trailerable No
-
Santorin’s main dimensions
-
Overall length 45’ 11” 14 m
-
Hull length 45’ 4” 13.8 m
-
Waterline length 35’ 1” 10.7 m
-
Beam (width) 13’ 1” 4 m
-
Waterline beam (width) 11’ 2” 3.4 m
-
Draft 6’ 2” 1.9 m
-
Mast height from DWL 55’ 10” 17 m
-
Light displacement (MLC) 18739 lb 8500 kg
-
Maximum displacement (MLDC) 24251 lb 11000 kg
-
Ballast weight 8157 lb 3700 kg
Santorin’s rig and sails
-
Upwind sail area 969 ft² 90 m²
-
Downwind sail area 1238 ft² 115 m²
-
Mainsail area 248 ft² 43 m²
-
-
Genoa area 581 ft² 54 m²
-
Symmetric spinnaker area 614 ft² 57 m²
-
Rigging type Sloop (in-mast furling mainsail) masthead
-
Mast configuration Deck stepped mast
-
Rotating spars No
-
Number of levels of spreaders 2
-
Spreaders angle 0 °
-
Spars construction Aluminum spars
-
Standing rigging 1×19 strand wire
Santorin’s performances
-
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
-
7.94 knots

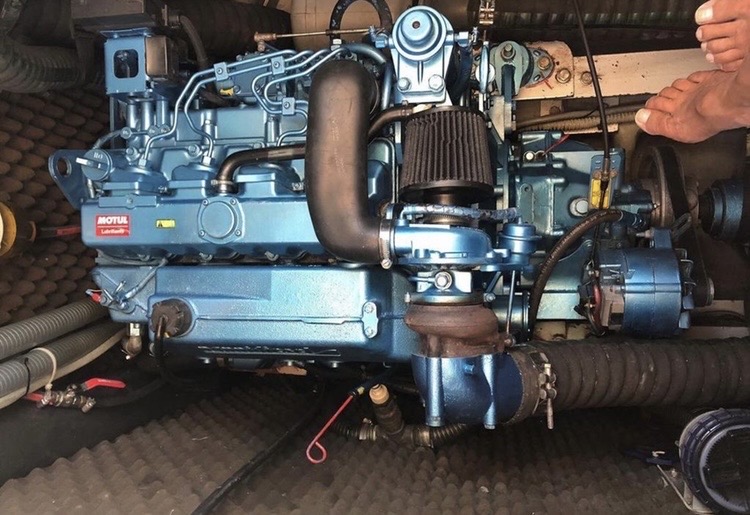

Santorin’s auxiliary engine
-
Engine(s) 1 inboard engine
-
Engine(s) power 50 HP
-
Fuel type Diesel
-
Fuel tank capacity 105.7 gal 400 liters
Santorin’s accommodations and layout
-

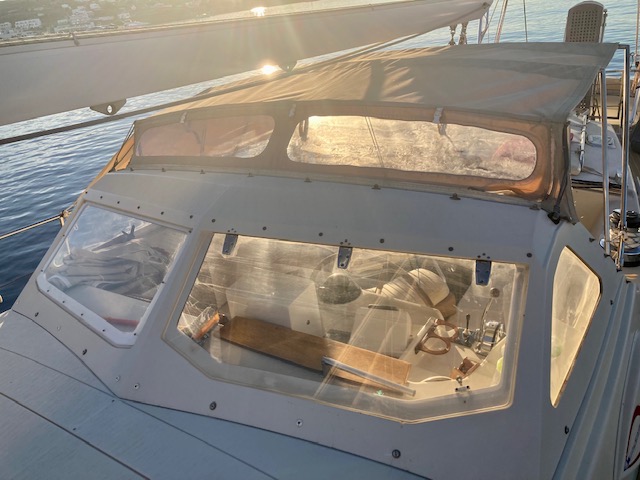

Cockpit Center cockpit
-
Cabin(s) 2
-
Berth(s) (min./max.) 5 / 7
-
Freshwater tank capacity 211.3 gal 800 liters
